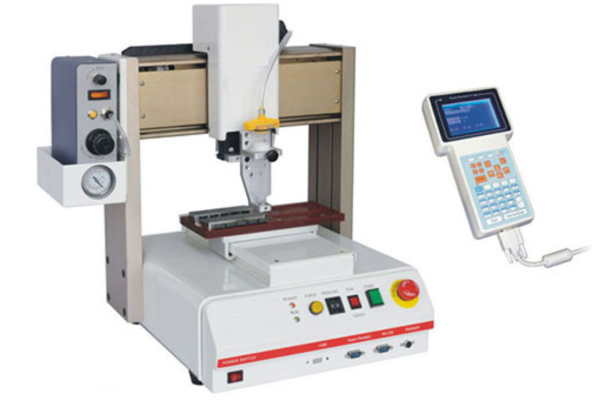

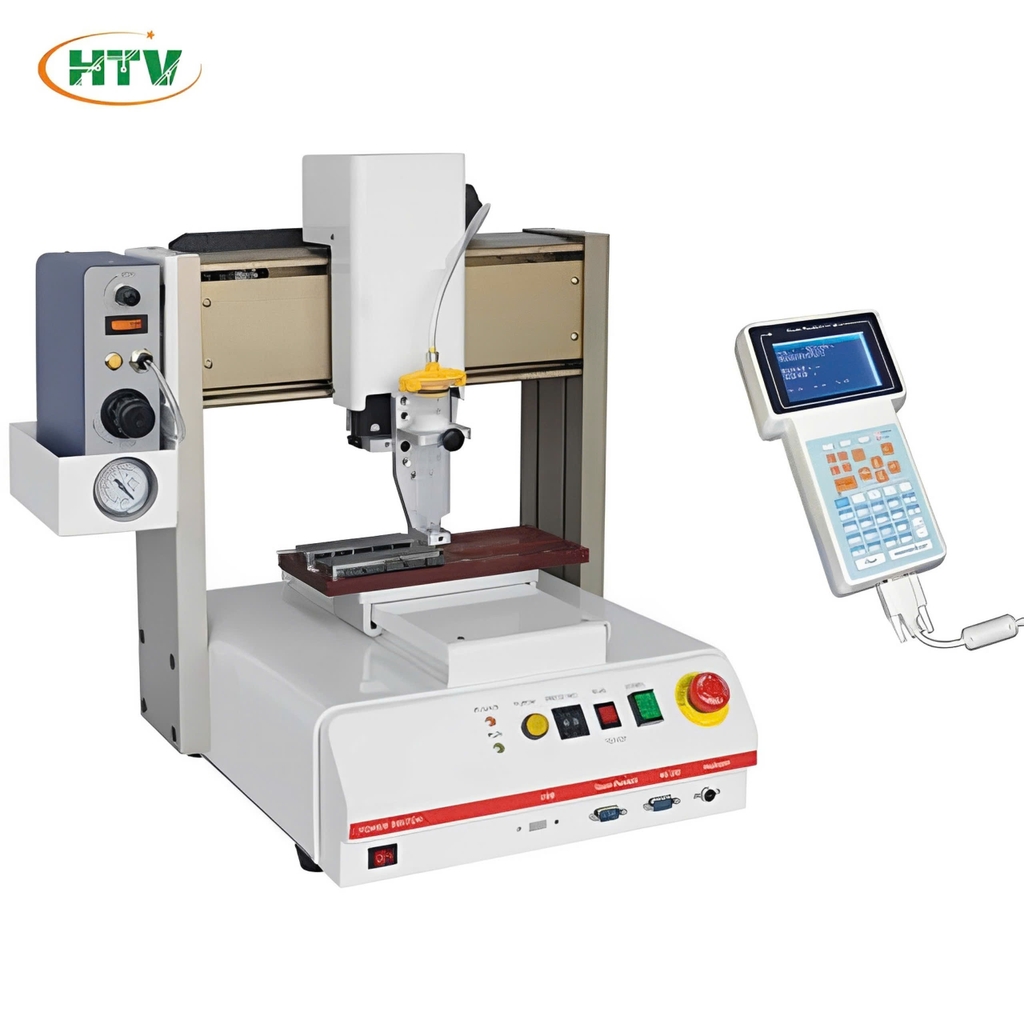

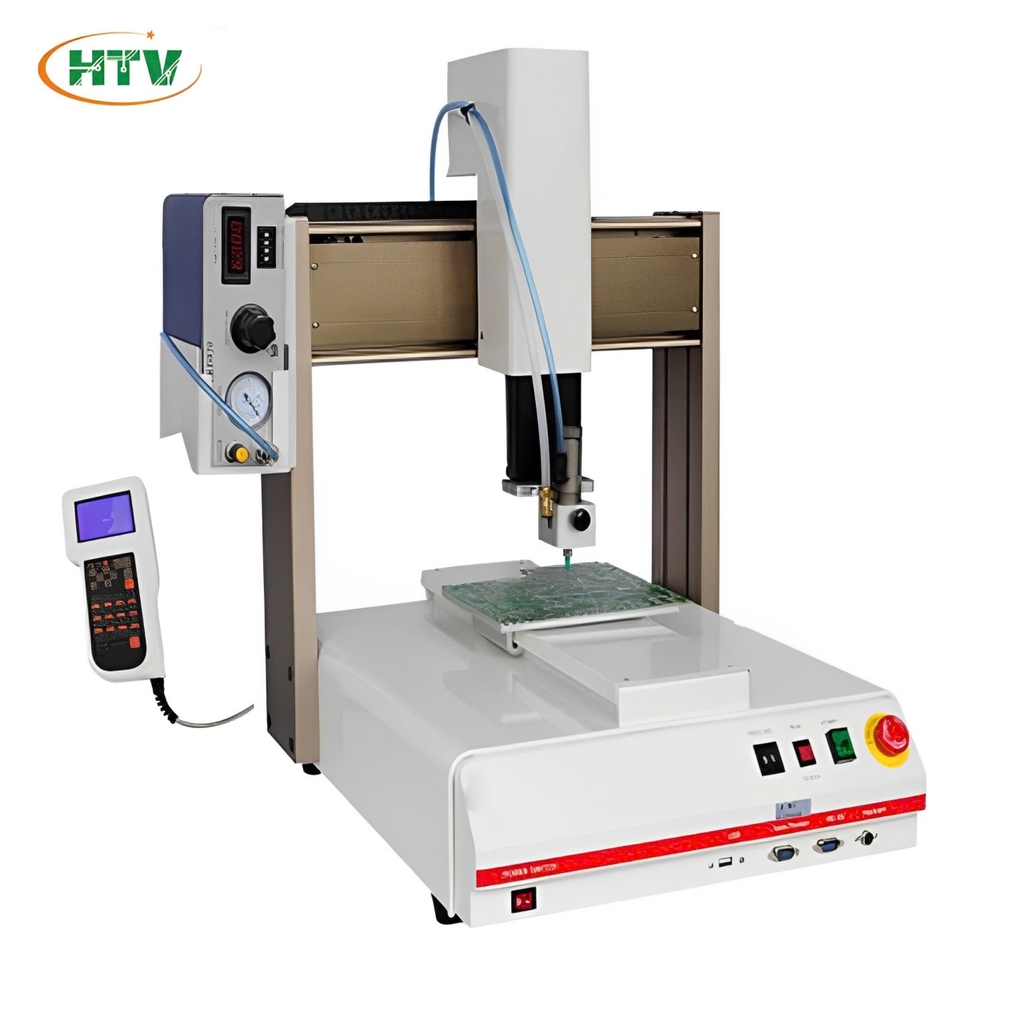

Máy bơm keo tự động HT-AG-0101 - Bình keo 20L

Liên hệ Còn hàng
HT-AG-Series Description  The general application of mechanical parts and automobile coating, mobile phone keypad dispensing, mobile phone battery package, notebook battery package, coil dispensing, PCB plate bonding sealing glue, IC glue sealing, horn ring dispensing, PDA encapsulation, L...

HT-AG-Series


Description

 The general application of mechanical parts and automobile coating, mobile phone keypad dispensing, mobile phone battery package, notebook battery package, coil dispensing, PCB plate bonding sealing glue, IC glue sealing, horn ring dispensing, PDA encapsulation, LCD encapsulation, IC package, IC adhesive bonding, shell, optical components processing, mechanical seal etc..


Operation theory

1. It has the functions of drawing points, lines, arcs, circles, irregular curves and continuous tween input programs, and can be used for three-dimensional dispensing.
2. Any point, line, surface, arc and other irregular curve continuous dispensing function.
3. High-speed, low noise speed DC brushless motor makes dispensing better.
4. The static eliminator can eliminate static electricity within ±100V.
5. Automatic compensation function of dispensing strength, making operation more convenient.
6. XY area array, translation rotation operation function, anti-use tray, suitable for different work positioning.
7. Support three-axis spatial linear interpolation, three-axis spatial circular interpolation, and elliptical arc interpolation.
8. Support computer graphics import function, can import PLT file, TCF file and G code file.

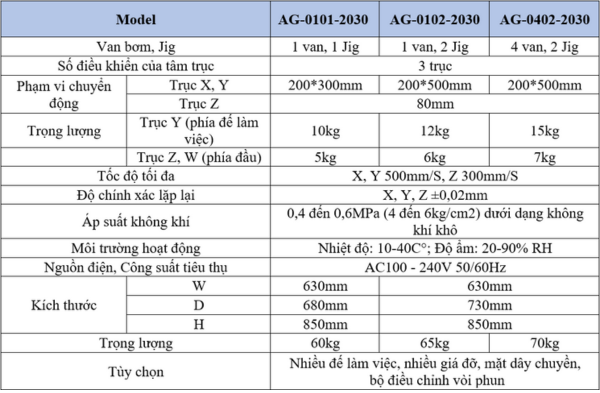

                    Series name

HT-AG-0101-2030

HT-AG-0102-2030

HT-AG-0402-2030

Pump valve, Jig

1 valve, 1 Jig

1 valve, 2 Jig

4 valve, 2 Jig

Control number of shaft center

3 axes

Movement
range

The X, Y-axis

200*300mm

200*500mm

200*500mm

The Z-axis

80mm

80mm

80mm

Weight

The Y-axis (the work base side)

10kg

12kg

15kg

Z,W axis (the head side)

5kg

6kg

7kg

Maximum Speed

X,Y 500mm/S, Z 300mm/S

Repeated precision

X,Y,Z  ±0.02mm

Air pressure requirement

0.4 to 0.6MPa (4 to 6kg/cm2) as dry air

Working conditions

Temperature: 10-40C°  ; Humidity: 20-90% RH

Power supply, Power consumption

                                                     AC100 - 240V 50/60Hz

Dimensions

               W

630mm

630mm

               D

680mm

730mm

               H

850mm

850mm

Weight

60kg

65kg

70kg

Optional

        Various work bases, various holders, Teaching Pendant, nozzle adjuster
