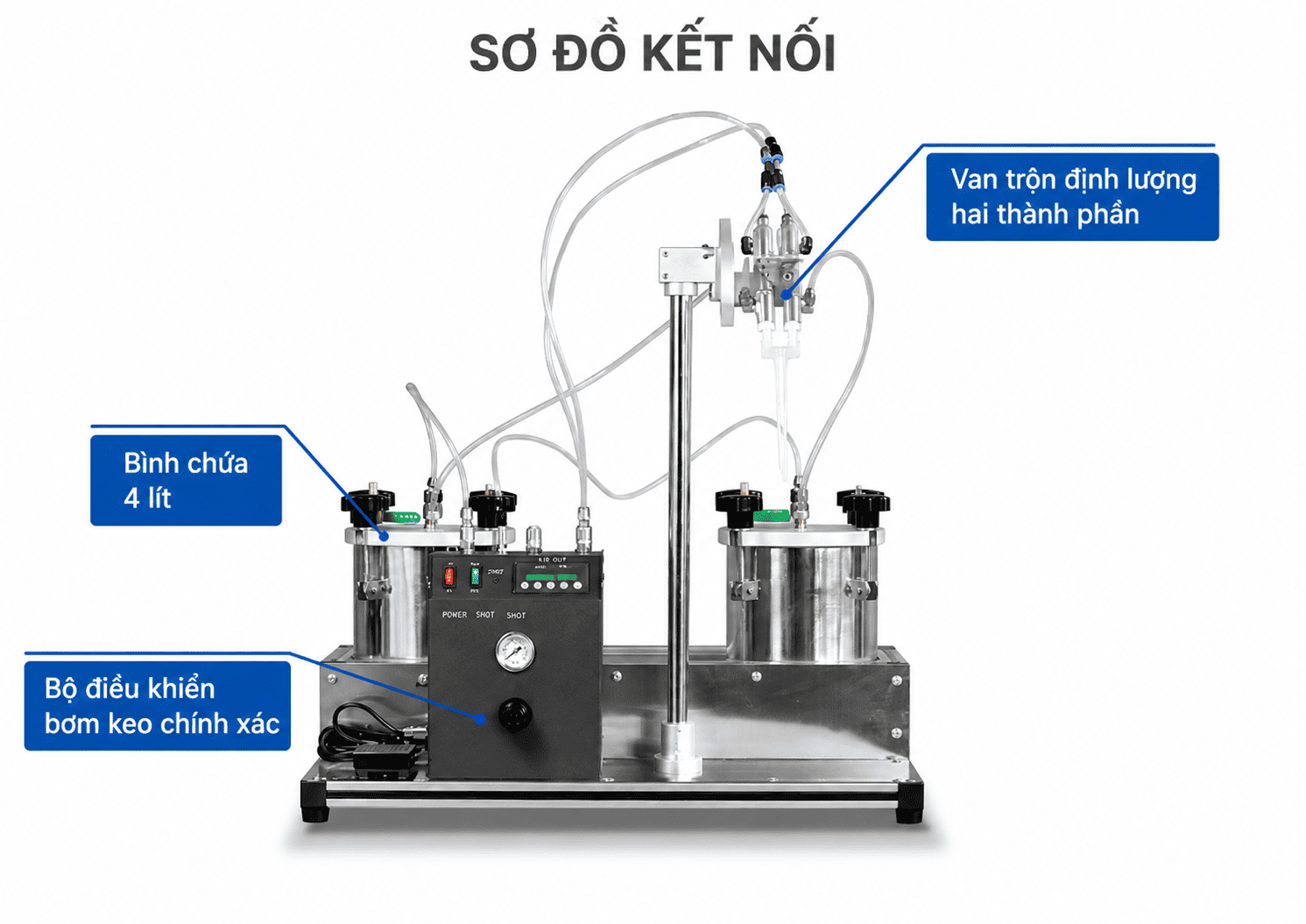

| Connect Drawing |
| Features |
| 1.Feed system is 4 liter tank large capacity for liquid material. Other have 0.5 liter ,2liter, 20 liter can option. 2.Two component Precision suck-back dispensing valve,close glue quickly,ensures no dripping. 3.High Precision Liquid dispensing controller. 4.The pedal /ring/inductive switches can be chosen. 5.Complete with an accessory dispensing kit. |
| Application |
|
Packing capacity:tank (0.5liter,2liter,4liter.20liter can option). |
|

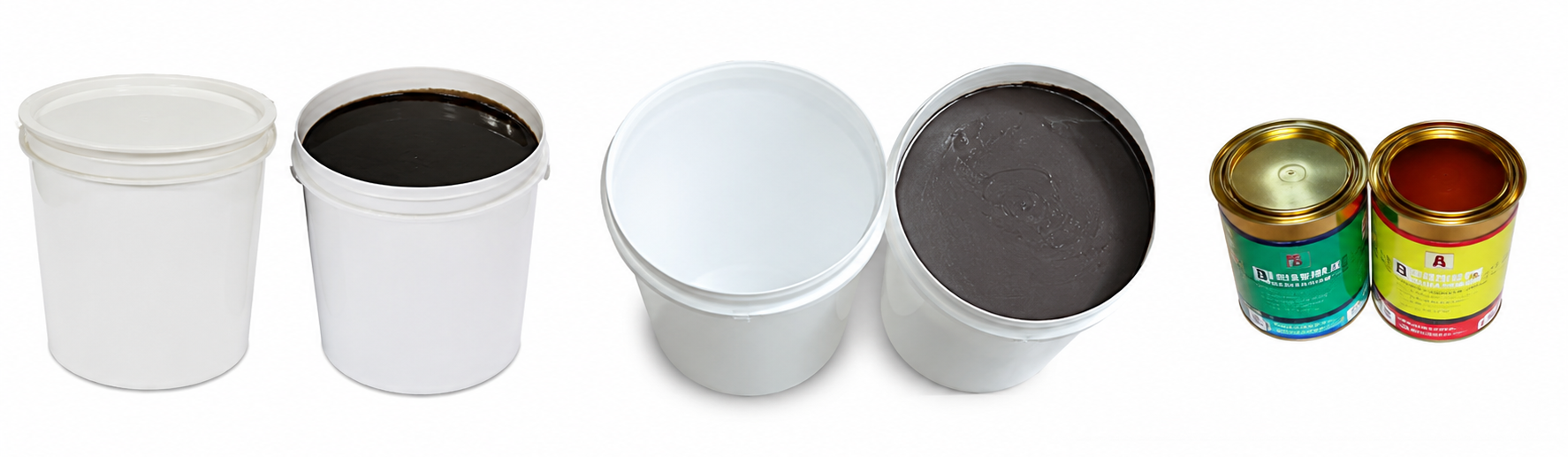

Liquid Material:AB glue.epoxy resin,PU glue,Two component material,two part mixing material. |

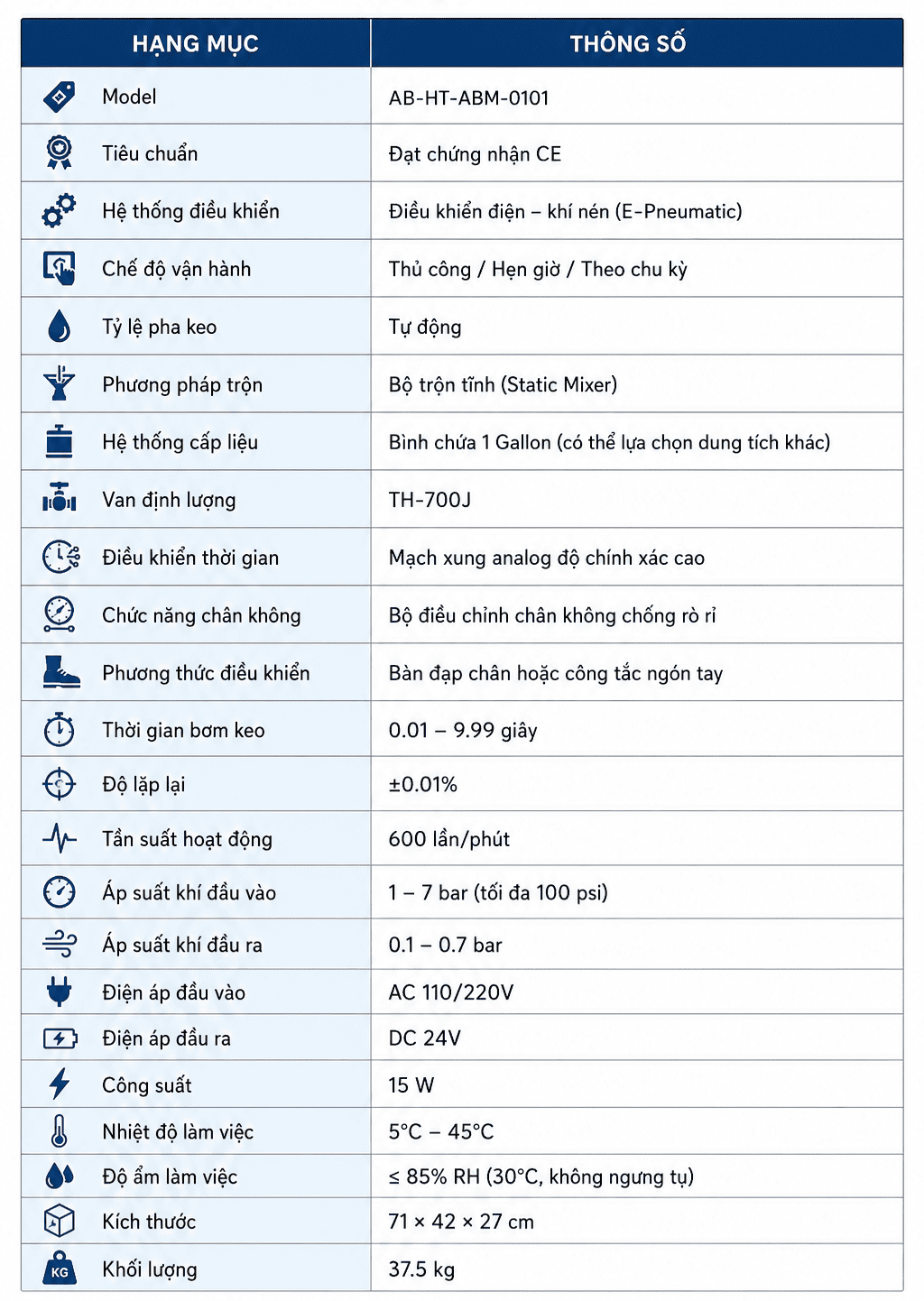

| Specification | |
| ITEM | AB-HT-ABM-0101 |
| Standard | CE Approved |
| Control | E-pneumatic |
| Operating Model | Manual, Timer,cycles |
| Liquid ratio | Automatic |
| Mixing method | static mixer |
| Feed system | 1gallon tank (Other capacity can be chosen) |
| Valve | TH-700J |
| Time control | high pulse analog circuit |
| Vacuum function | Leak-proof vacuum adjusting organ |
| Control way | Foot Pedal, Finger Switch |
| Dispensing time | 0.01S-9.99S |
| Repeatability | +/-0.01% |
| Frequency | 600 times/minute |
| Input Air pressure | 1-7 bar (100 psi) maximum (1bar =1.01972kg/cm² =14.5038psi) |
| Air output | 0.1bar-0.7bar |
| Input voltage | 110/220VAC |
| Output voltage | 24VDC |
| Power | 15W |
| Temperature | 5°C to 45°C (41°F-113°F) |
| Humidity | 85% RH at 30°C non-condensing |
| Size | 71X42X27cm |
| Weight | 37.50KG |
