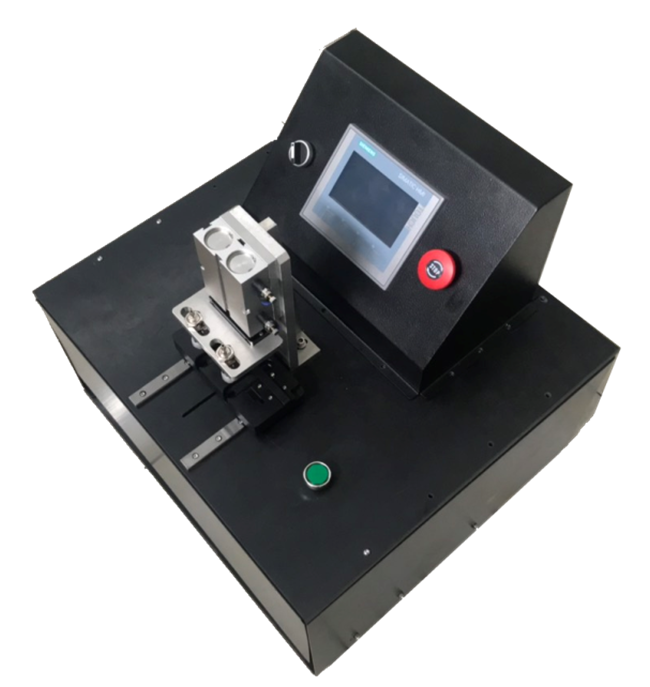

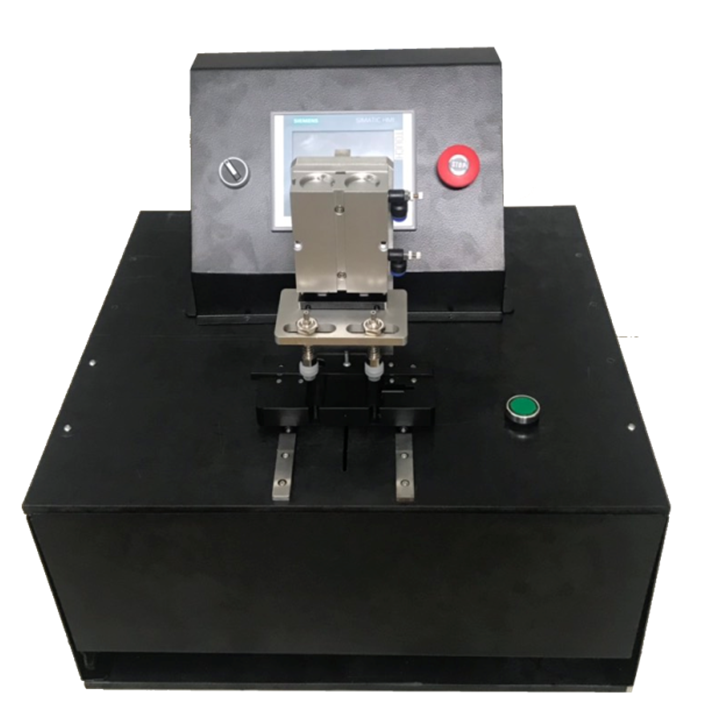

It is used for sealing detection, waterproof detection, leakage detection,it is widely used in various fields of industry, communications, automotive parts, valves, electronic consumption, medical equipment, military supplies, security lighting, wire, battery, smart home,etc.
|
Specifications |
|||
|
Model |
Normal series |
Medium-pressure |
High pressure |
|
Range And Accuracy |
-40~150kpa |
-80~600kpa |
50~1400kpa |
|
Sensor precision 0.2% |
Sensor precision 0.2% |
Sensor precision 0.2% |
|
|
Pressure regulation 0.2% |
Pressure regulation 0.2% |
Pressure regulation 0.2% |
|
|
Display Resolution |
1Pa |
3Pa |
5Pa |
|
Form Of Pressure |
Integrated positive and negative |
||
|
Pressure Regulation Form |
Mechanical |
||
|
Pressure Units |
kpa pa kg/cm² Psi Mpa bar Mbar mmhg |
||
|
Flow Units |
scch (ml/h) sccm (ml/m) sccs(ml/s) |
||
|
Historical Data Preservation |
200m/ about 200 thousand history records , which can expand the capacity of the USB and support 32GB. |
||
|
Data Output Format |
Can be exported |
||
|
Communication Interface |
1 USB port/ 1 RS232/ 1 LAN net Port |
||
|
Communication Protocol |
Modbus RS232 rs48 tpc/ip |
||
|
I/O Control Interface |
NPN 6 output/3 input |
||
|
Size |
400L * 280W * 254H |
||
|
Weight |
10kg |
||
|
Output Nozzle Size |
Ø4*2 PU/ Nylon tube |
||
|
Intake Pipe Size |
Ø8*6 PU tube |
||
|
Power Request |
AC 110V-260V 50hz |
||
|
Air Pressure Request |
AC 110V-260V 50hz |
||
