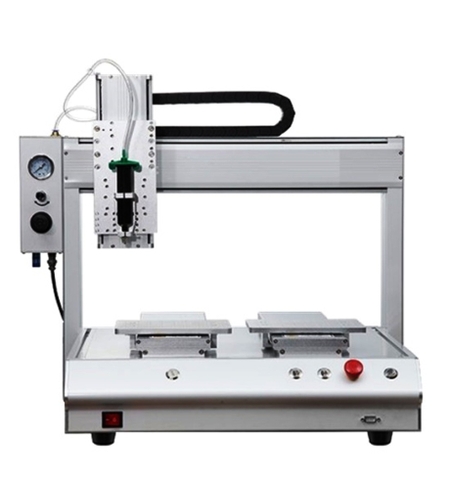

HT-AG-Series
Description
The general application of mechanical parts and automobile coating, mobile phone keypad dispensing, mobile phone battery package, notebook battery package, coil dispensing, PCB plate bonding sealing glue, IC glue sealing, horn ring dispensing, PDA encapsulation, LCD encapsulation, IC package, IC adhesive bonding, shell, optical components processing, mechanical seal etc..
Operation theory
1. It has the functions of drawing points, lines, arcs, circles, irregular curves and continuous tween input programs, and can be used for three-dimensional dispensing.
2. Any point, line, surface, arc and other irregular curve continuous dispensing function.
3. High-speed, low noise speed DC brushless motor makes dispensing better.
4. The static eliminator can eliminate static electricity within ±100V.
5. Automatic compensation function of dispensing strength, making operation more convenient.
6. XY area array, translation rotation operation function, anti-use tray, suitable for different work positioning.
7. Support three-axis spatial linear interpolation, three-axis spatial circular interpolation, and elliptical arc interpolation.
8. Support computer graphics import function, can import PLT file, TCF file and G code file.
Series name |
HT-AG-0101-2030 |
HT-AG-0102-2030 |
HT-AG-0402-2030 |
|
Pump valve, Jig |
1 valve, 1 Jig |
1 valve, 2 Jig |
4 valve, 2 Jig |
|
Control number of shaft center |
3 axes |
|||
Movement |
The X, Y-axis |
200*300mm |
200*500mm |
200*500mm |
The Z-axis |
80mm |
80mm |
80mm |
|
Weight |
The Y-axis (the work base side) |
10kg |
12kg |
15kg |
Z,W axis (the head side) |
5kg |
6kg |
7kg |
|
Maximum Speed |
X,Y 500mm/S, Z 300mm/S |
|||
Repeated precision |
X,Y,Z ±0.02mm |
|||
Air pressure requirement |
0.4 to 0.6MPa (4 to 6kg/cm2) as dry air |
|||
Working conditions |
Temperature: 10-40C° ; Humidity: 20-90% RH |
|||
Power supply, Power consumption |
AC100 - 240V 50/60Hz |
|||
Dimensions |
W |
630mm |
630mm |
|
D |
680mm |
730mm |
||
H |
850mm |
850mm |
||
Weight |
60kg |
65kg |
70kg |
|
Optional |
Various work bases, various holders, Teaching Pendant, nozzle adjuster |
