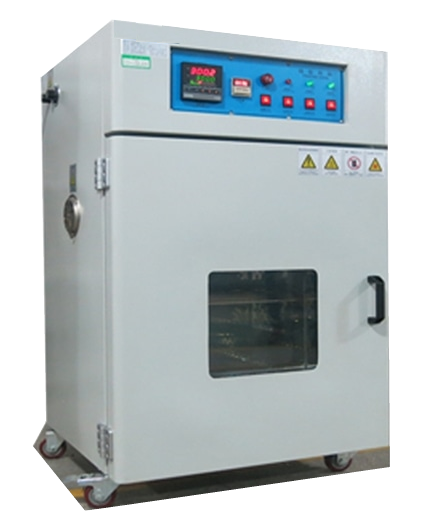

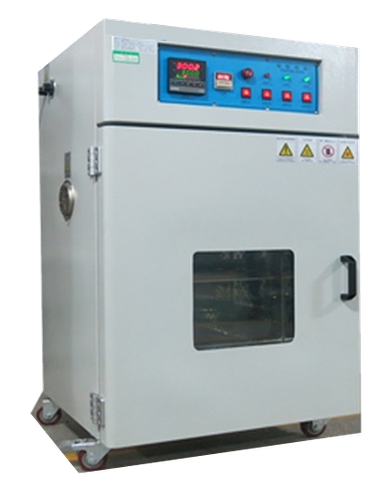

Lò Chamber nhiệt độ cao

MODEL

RHD-60

Internal Dimension

W-H-D 500*600*500 (mm)

External Dimension

W-H-D 700*1200*650  (mm)

Internal and External Material

Material of the inner box is SUS 304 stainless, of the outer box is stainless steel or SEE cold-roller steel with paint coated.

Temperatune  Range

RT~200°C ; (300-500°C  is optional)

Tolerance

±0.5°C

Temperatune  Rising Speed Rate

Temperatune  Rising Speed Rate :RT~200°C , Approx, 35mins

Control Method

 Micro PID + SSR + Timer

Storage Shelf

Two layers

Observation Glass Window

When temperatune is RT~200°C, with observation glass window

When temperatune is 200°C~500°C, without observation glass window

Power

AC220V; 1 p 3lines 50-60Hz           AC380V;  3P 5lines 50-60Hz
