Description:
HT-HSD-Series is a new advanced automatic machine for soldering connector which researched and developed by our company. With advanced structure, easily operate, stable performance, environment production and so on. HT-HSD-Series can automatically complete all the production process of cutting, stripping, soldering connector and unloading at one time, it greatly reduces human input and operator intensity, solving the bad environment problems of soldering process. HT-HSD-Series adopts vibrating tray and placing wire by hand, it can adjust loading time based on the skilled degree of operator, which can greatly improve the utilization of manpower and make the production efficiency maximize.
Applicable:

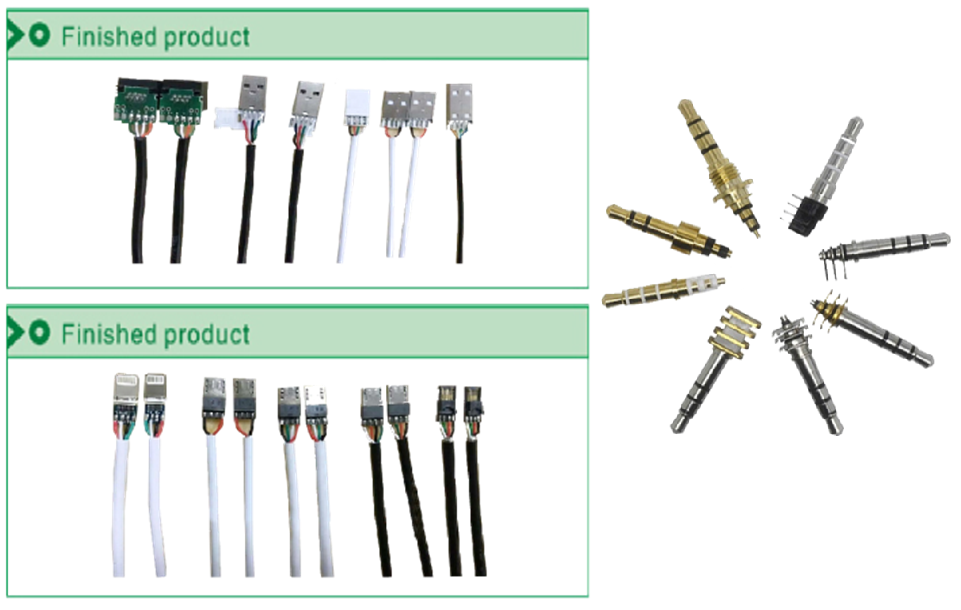

Iphone Lightning connector, USB, type B, type C connector, Jack micro 2.5 ,3.5 ,6.0
|
High precise soldering machine |
|||
|
Model |
HT-HSD-Series |
Pressure connection speed |
1000-1500pcs/h |
|
Soldering angle |
90 degree |
Voltage |
AC220V/50Hz |
|
Wire stripping size |
0.5-0.8MPa |
Weight |
120KG |
|
Dimension |
1000mm*800mm*1300mm（Customized） |
||
